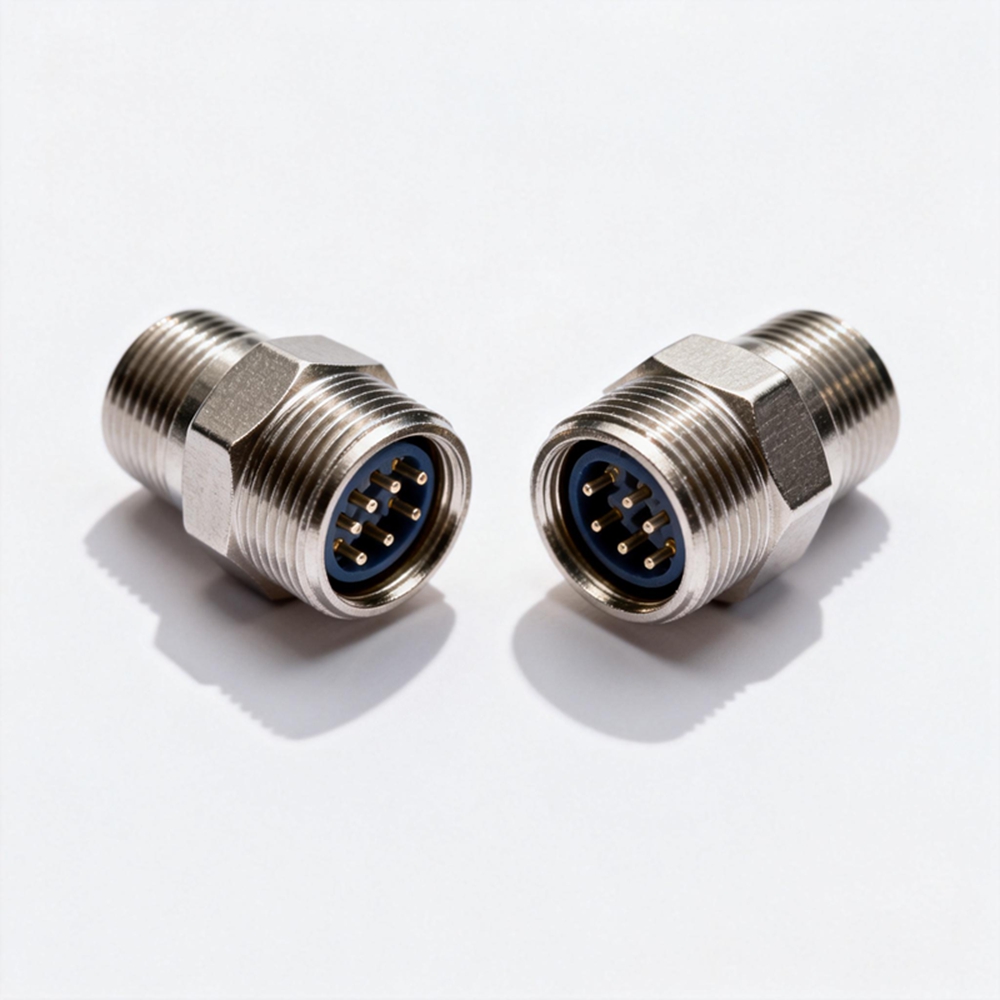

Industrial M8 Female 4 Pin Connector

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: M8 Circular Connector

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Dvi, Hdmi, Scart, Adapter, Din, Rj45, Smb, Sma

Application: Automotive, Rf, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf

Gender: Female, Male

Contacts: 16p, 1p, 7p, 2p, 6p, 4p, 9p, 5p, 3p, 8p

Type: Waterproof

Gender: Female and male

Pin Number: 2 3 4 5 6 8 12 17 pin

Coded: A/B/D/X

Rated Voltage: 250V

Rated Current: 4A

Contact Material: copper (gold-plated)

Insert Material: PA66+30%GF

Waterproof Degree: IP67

Temperature Range: -25~+85°C

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CNC Machining Parts 2



Product Description

Industrial M8 Female 4 Pin Connector

This M8 connector is designed to function as a dependable Waterproof Connector in industrial environments. With IP67 protection and compliance with IEC61076-2-104, it ensures stable operation. Available in multiple pin configurations, it works well as an industrial connector for automation systems and can also support applications requiring Aviation Connector-level durability. M12, M5, and M16 options are also provided.

This connector is a solid choice for applications where consistent performance matters. It is designed to handle everyday use without unnecessary complexity. Installation is simple, and the connection remains stable once secured. It’s often used in automation systems and equipment that require dependable signal connections.

Basic Specifications

1. Technical Parameters
Design Standard	DIN EN 61076-2-101/109/111 (IEC)
Connector Design:	M8 Field Wireable Connector
Connector locking system:	Screw
Shielded Optional:	Unshielded or Shielded
Termination:	Panel Mount Connector
Panel Mount Conn Design:	Solder, Dip Solder, Crimping, Litz wires
Coding:	A	A	A, D	B	A	A
Contacts:	2	3	4	5	6	8
Current:	4A	4A	4A	3A	2A	1.5A
Voltage:	60V	60V	60V	30V	30V	30V
Withstanding Voltage:	800V	800V	800V	800V	800V	800V
Wire Gauge:	24AWG	24AWG	24AWG	24AWG	26AWG	26AWG
Material:	PA66, Brass Gold Plated
Mechanical Operation:	>100 Mating Cycles
Contacts Resistance:	3m Ω
Operation Temperature:	~25°C ~ 85°C
Protection Rate:	IP67
Salt Mist:	48h
All Materials meet RoHS requirements
