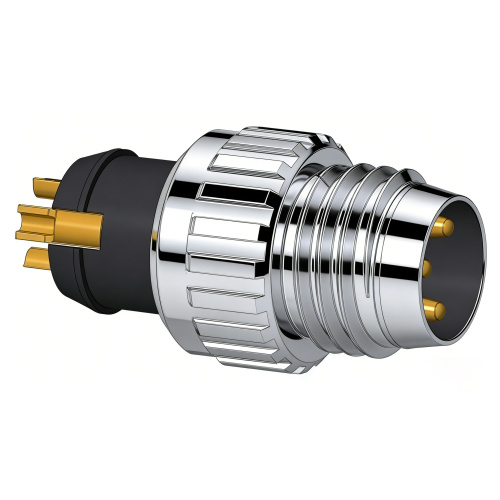

Waterproof Circular PCB Connectors

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: M8 Circular Connector

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Vga, Bnc, Dvi, Hdmi, Rca, Din, Adapter, Rj45, Rgb, Mmcx, Smb, Sma

Application: Automotive, Rf, Power, Microwave, Fpc, Audio &Amp; Video, Uhf

Type: Waterproof

Gender: Female and male

Pin Number: 2 3 4 5 6 8 12 17 pin

Coded: A/B/D/X

Rated Voltage: 250V

Rated Current: 4A

Contact Material: copper (gold-plated)

Insert Material: PA66+30%GF

Waterproof Degree: IP67

Temperature Range: -25~+85°C

Gender: Female, Male

Contacts: 1p, 7p, 2p, 6p, 4p, 9p, 5p, 3p, 8p

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CNC Machining Metal Hardware Parts



Product Description

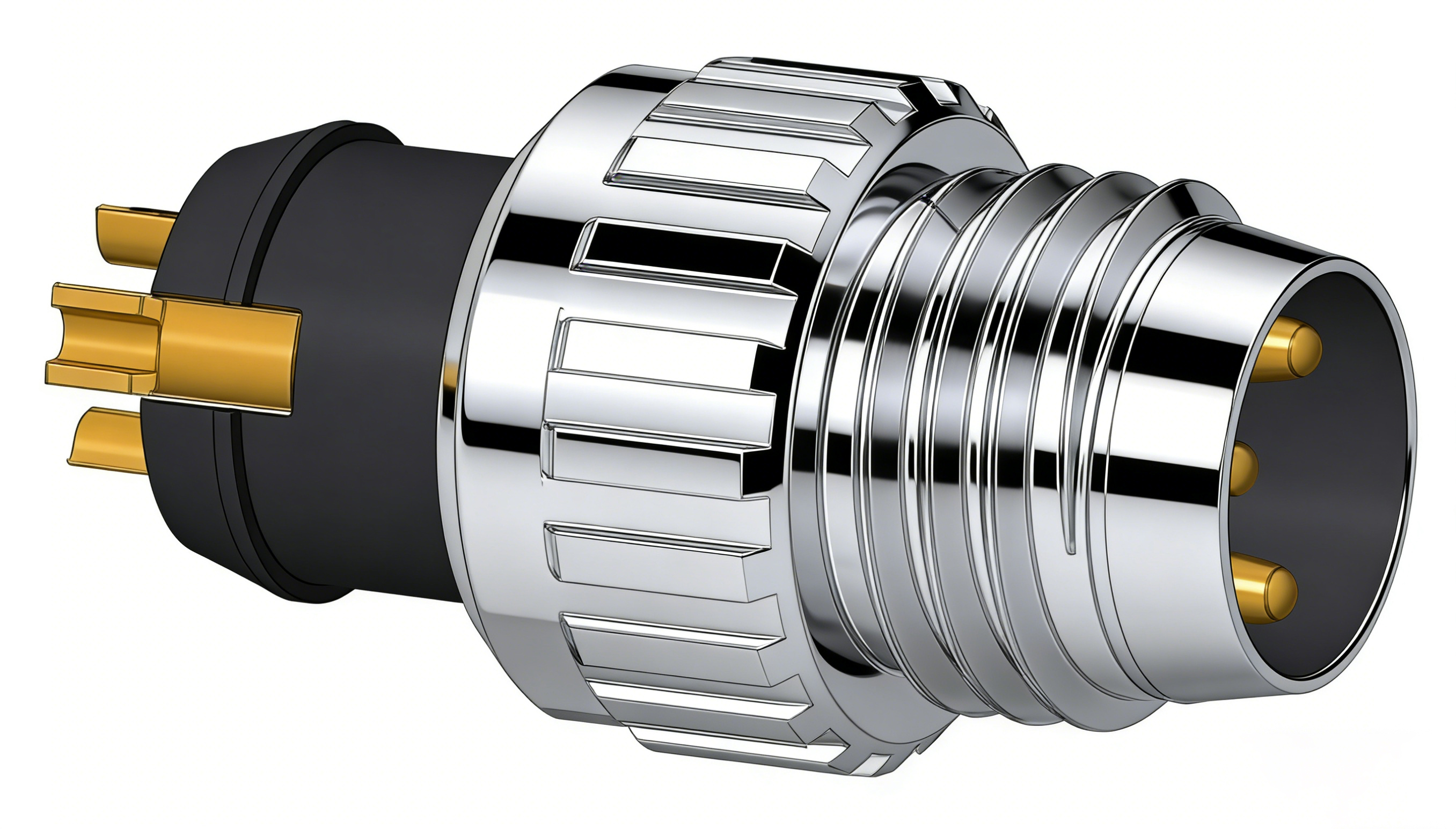

M8 Industrial Connector – Waterproof Circular PCB Connectors

Combining durability and flexibility, our M8 connector works as both an industrial connector and a Waterproof Connector for demanding environments. It meets IEC61076-2-104 and offers IP67 protection. With various Pin options and customization capabilities, it can be adapted to different industries, including those where Aviation Connector standards are considered. We also offer M12, M5, and M16 connector solutions

We’ve worked with many customers who needed a compact connector for their equipment, and this M8 solution fits well in those cases. It’s not complicated, but it does the job reliably. Whether used in sensors, small machines, or control systems, it provides a stable connection. We can also support Custom Cable assemblies based on your project needs.

Basic Specifications

1. Technical Parameters
Design Standard	DIN EN 61076-2-104 (IEC)
Connector Design:	M8 Field Wireable Connector
Connector locking system:	Screw
Shielded Optional:	Unshielded or Shielded
Termination:	Panel Mount Connector
Panel Mount Conn Design:	Solder, Dip Solder, Crimping, Litz wires
Coding:	A	A	A, D	B	A	A
Contacts:	2	3	4	5	6	8
Current:	4A	4A	4A	3A	2A	1.5A
Voltage:	60V	60V	60V	30V	30V	30V
Withstanding Voltage:	800V	800V	800V	800V	800V	800V
Wire Gauge:	24AWG	24AWG	24AWG	24AWG	26AWG	26AWG
Material:	PA66, Brass Gold Plated
Mechanical Operation:	>100 Mating Cycles
Contacts Resistance:	3m Ω
Operation Temperature:	~25°C ~ 85°C
Protection Rate:	IP67
Salt Mist:	48h
All Materials meet RoHS requirements
