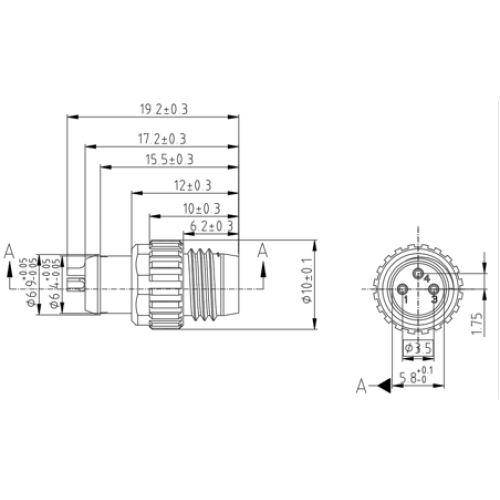

Stainless Steel M8 Connector 4 Pin Female Nut

Stainless Steel M8 Connector 4 Pin Female Nut

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Product Description

Other information

Product Attributes

Model No.: m8 circular connectors

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Vga, Usb, Bnc, Dvi, Rca, Scart, Adapter, Din, Rj45, Sma

Application: Automotive, Rf, Power, Fpc, Microwave, Pcb, Audio &Amp; Video, Uhf

Gender: Female, Male

Contacts: 1p, 7p, 2p, 6p, 4p, 9p, 5p, 3p, 8p

Application: Industrial Automation

Cable Temperature: -40°C to + 85°C

IP Rating: IP67/ IP68

Cable Diameter: 6.0mm ±0.30mm

Cable, Note: Signal/Data transmission, By IEC 61076-2-104

Conductor Cross-section: 18AWG/20AWG/22AWG/24AWG/26AWG/28AWG

Connection 1: M5/M8/M12/M16/M23, Male/Female, straight/angle, 3/4/5/6/8/12/17-pin, A/B/D/X coded

Number Of Conductors: 2/3/4/5/6/8/12/17

Rated Voltage: 30V-250V

Rated Current (40 °C): 1A-4A (High current version up to 8A)

Cable Jacket Material, Note: Shielded/Unshielded

Cable Jacket, Material: PUR/PVC/TPU

Cable Shield/Unshielded: Aluminum foil and copper braid/Unshielded

Material Contacts: Copper gold plated

Material Cover Nut: Brass

Cable Jacket, Color: Black/Green/Blue/Yellow/Grey

Cable Length L: Any length

Product Description

M8 Industrial Connector – Precision Interconnect for Automated Systems

We specialize in customized Industrial Connector, Waterproof Connector, and Aviation Connector solutions tailored to specific project requirements. Our engineering team supports custom Pin layouts, cable assemblies, overmolding, and hybrid designs combining signal and power transmission. By aligning with your technical specifications and cost targets, we help accelerate development cycles and deliver optimized connectivity solutions.

For this M8 connector series, we follow the IEC 61076-2-104 standard, which means it’s compatible with most commonly used systems.

It comes with IP67 protection, so you don’t need to worry about dust or water in typical industrial use. We can provide A-code, B-code, and D-code, depending on whether you are working with signals, sensors, or communication systems.

There are 3 to 8 pin options available, and we can do both shielded and unshielded versions based on your environment. If you have specific requirements on appearance or plating, we can also customize that.

We’ve tested it with 48 hours of salt spray, and it works in temperatures from -40°C up to 105°C, which is suitable for most industrial scenarios.

Basic Specifications

1. Screw threaded locking system, simple in using, convenient in installation;

2. Specially designed for low-voltage, weak-current products;

3. With compact structure, small and exquisite shape, the plug is more suitable for product needs;

4. T series waterproof connector.

5. Black, white for choices.

6. You need to check the wire size and each cable length.

7. Any length of the cable is available and terminal processed.

8. You can get some sample before mass order.

9. Delivery Time 7-15 days according to quantitty.

10. Packaging 1.Carton; 2.Customized as requirement.

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
