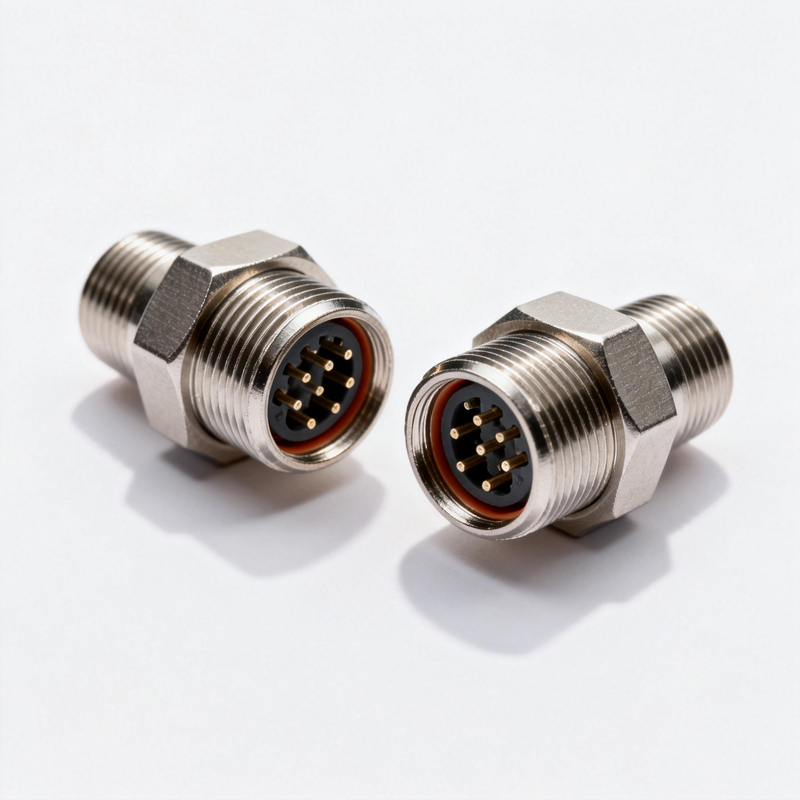

Stainless Steel Cord Grip Connector – Waterproof Aviation

Stainless Steel Cord Grip Connector – Waterproof Aviation

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Product Description

Other information

Product Attributes

Model No.: m8 circular connectors

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Vga, Hdmi, Dvi, Adapter, Din, Rj45

Application: Rf, Automotive, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf

Gender: Female, Male

Contacts: 1p, 7p, 6p, 2p, 4p, 9p, 5p, 3p

Application: Industrial Automation

Cable Temperature: -40°C to + 85°C

IP Rating: IP67/ IP68

Cable Diameter: 6.0mm ±0.30mm

Cable, Note: Signal/Data transmission, By IEC 61076-2-104

Conductor Cross-section: 18AWG/20AWG/22AWG/24AWG/26AWG/28AWG

Connection 1: M5/M8/M12/M16/M23, Male/Female, straight/angle, 3/4/5/6/8/12/17-pin, A/B/D/X coded

Number Of Conductors: 2/3/4/5/6/8/12/17

Rated Voltage: 30V-250V

Rated Current (40 °C): 1A-4A (High current version up to 8A)

Cable Jacket Material, Note: Shielded/Unshielded

Cable Jacket, Material: PUR/PVC/TPU

Cable Shield/Unshielded: Aluminum foil and copper braid/Unshielded

Material Contacts: Copper gold plated

Material Cover Nut: Brass

Cable Jacket, Color: Black/Green/Blue/Yellow/Grey

Cable Length L: Any length

Product Description

M8 Industrial Connector – Precision Interconnect for Automated Systems

Our Waterproof Connector, Industrial Connector, and Aviation Connector solutions are engineered to perform in extreme outdoor and high-moisture environments. With protection ratings up to IP67 and IP68, these connectors are ideal for renewable energy systems, EV charging stations, and outdoor equipment. Advanced sealing technology and corrosion-resistant materials ensure long-term durability even in harsh weather and high-humidity conditions.

Our M8 connector series is built based on IEC 61076-2-104, so it fits well with standard equipment and is easy to integrate into existing systems.

It comes with IP67 protection, which means it can handle dust and water in daily industrial use. We offer A, B, and D coding, covering common applications like sensors, actuators, and communication.

You can choose from 3 to 8 pins, with both shielded and unshielded options available. If you need something specific in terms of design or plating, we’re flexible on customization.

The connector has been tested with 48-hour salt spray and supports temperatures from -40°C to 105°C, so it’s a reliable choice for long-term use.

1. Technical Parameters
Design Standard	DIN EN 61076-2-101/109/111 (IEC)
Connector Design:	M8 Field Wireable Connector
Connector locking system:	Screw
Shielded Optional:	Unshielded or Shielded
Termination:	Panel Mount Connector
Panel Mount Conn Design:	Solder, Dip Solder, Crimping, Litz wires
Coding:	A	A	A, D	B	A	A
Contacts:	2	3	4	5	6	8
Current:	4A	4A	4A	3A	2A	1.5A
Voltage:	60V	60V	60V	30V	30V	30V
Withstanding Voltage:	800V	800V	800V	800V	800V	800V
Wire Gauge:	24AWG	24AWG	24AWG	24AWG	26AWG	26AWG
Material:	PA66, Brass Gold Plated
Mechanical Operation:	>100 Mating Cycles
Contacts Resistance:	3m Ω
Operation Temperature:	~25°C ~ 85°C
Protection Rate:	IP67
Salt Mist:	48h
All Materials meet RoHS requirements

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
