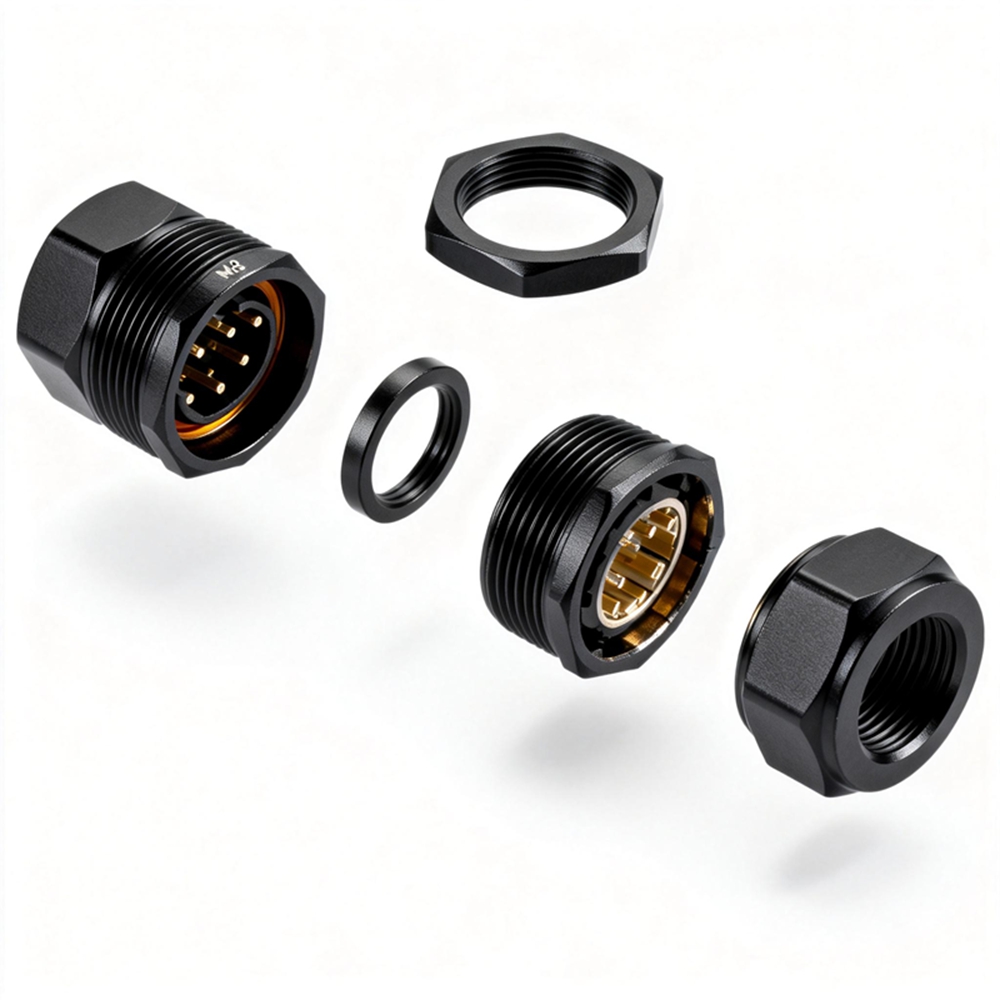

M12 4 Pin D Coded Waterproof

Modern industrial automation demands components that can withstand constant motion, moisture, and electromagnetic interference. Our M12 Connector combines the ruggedness of an Aviation Connector with the sealing capabilities of a Waterproof Connector, making it the ideal choice for robotics, assembly lines, and outdoor industrial applications.

As a true heavy-duty industrial connector, it ensures uninterrupted communication between sensors, actuators, and control systems in the harshest factory environments.

• Robotics Applications: Designed with aviation-grade materials to withstand continuous flexing and vibration in robotic arms and pick-and-place units.

• Industrial Automation: Serves as the go-to industrial connector for PROFINET, DeviceNet, and CANbus networks in smart factories.

• Outdoor & Washdown Areas: Fully functions as a waterproof connector with IP67/IP68 protection against pressure washdowns, coolant, and heavy rain.

• Aviation-Inspired Durability: The threaded coupling mechanism, borrowed from aviation connector design principles, guarantees a secure, vibration-proof mate every time.

Technical Parameters：

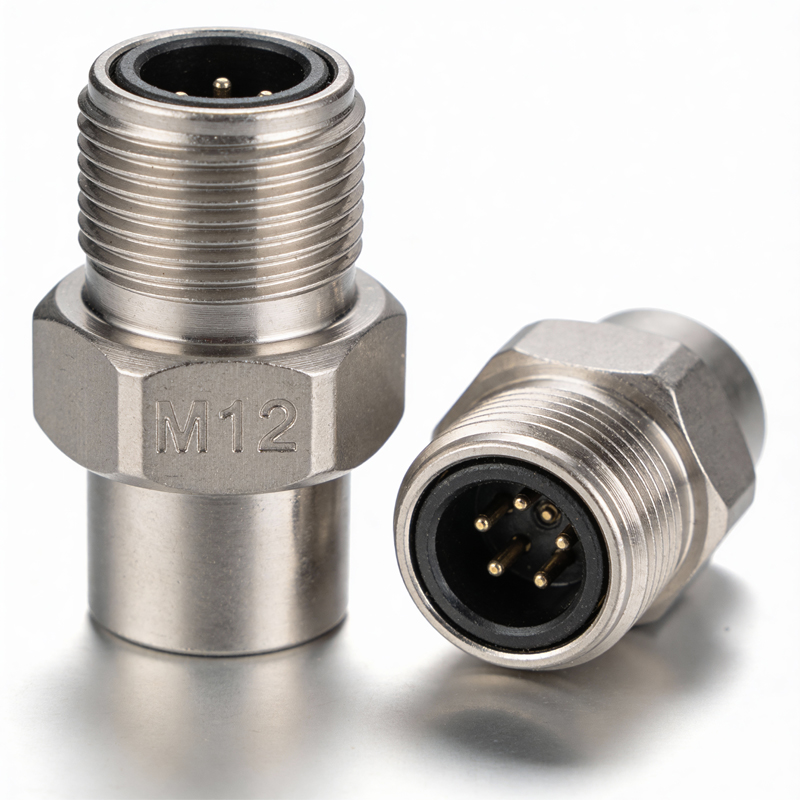

Product name: M12 Socket, shielded  6pin A-coding

Ratings: Voltage: 60 V

Current: 4 A

Operating Temperature Range: -40 ~ 105 °C

Materials

1. Insulator: PA66glass fiber, UL94 HB, black

2. Pin: phosphor copper, gold plated

3 . Inner shielding: Zinc aluminum alloy, nickel plated

4 .Shell: C3604 brass, nickel plated

5 .O-ring: Nitrile rubber, black

Electrical Requirements

1.Dielectric strength: 1 min @ 500 Vac

2.Insulation resistance: 100 MΩ @ 500 Vdc

3.Contact resistance: 10 mΩ or less

Mechanical Requirements

Life cycle: 1000 mating cycles minimum

Environmental Requirements

Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl

mist for 48 hrs. Wash parts after test. Maintain mechanical

requirements and a contact resistance of less than 10 mΩ.

Waterproof: IP67

Assembly Info: Wire gauge: 24 AWG max

Certificate: CE,ISO9001,RoHS
