M12 4 pin 5 pin Connector Pinout

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: M12 Circular Connector

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Vga, Dvi, Hdmi, Rca, Adapter, Din, Rj45

Application: Rf, Automotive, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf

Gender: Female, Male

Contacts: 16p, 1p, 7p, 2p, 6p, 5p, 3p, 8p, 10p, 4p, 9p

Application: Automotive, New Energy, Robot, Industiral, Industrial Ethernet, Profinet, Ethernet IP

Type: Waterproof Connector

Rated Current: 4 A, 2 A

Rated Voltage: 250 V

IP Level: IP67 / 68

Contact Material: Copper Gold Plating

Housing Material: Brass nickel-plated/Zinc alloy nickel-plated/PA-GF

Gender: Female / Male

Shape: Round

Number Of Pins: 2,3,4,5,6,8,12,17pin

Current Rate: 1.5A/2A/4A

Cording: A/B/C/D

Insulator Material: PA+GF/TPU

Type Of Connection: Screw/ solder connection

Molding Material: TPU/PVC

Sealing Material: Epoxy resin/Rubber

Temperature Range: -25°C ~ +85°C

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Customized Connectors



Product Description

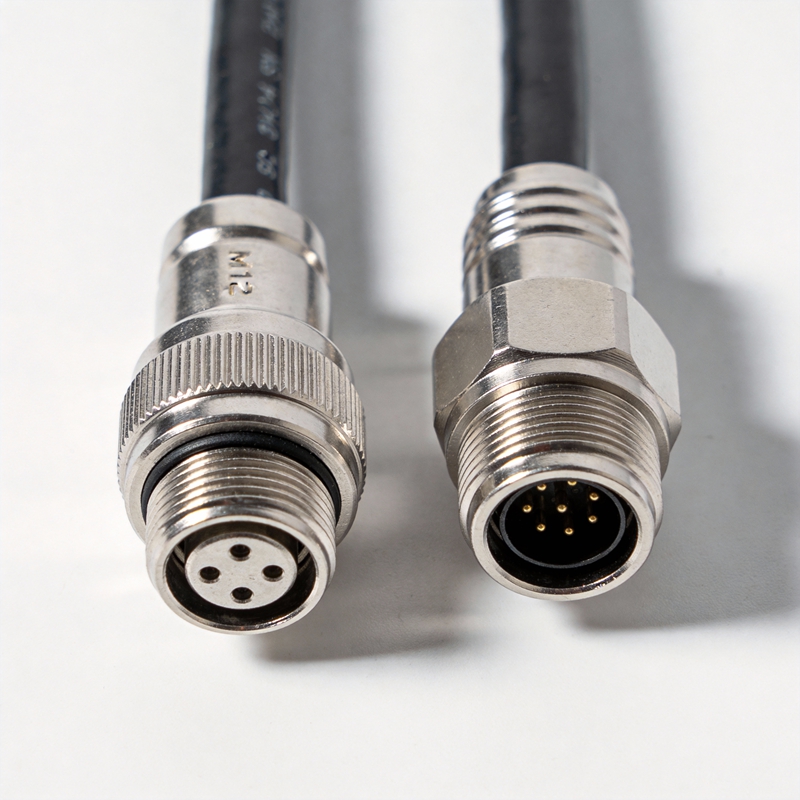

M12 Series: Industrial, Waterproof & Aviation-Grade Connector Solutions

Engineered for the rigors of factory automation, our M12 Connectors merge the mechanical precision of Aviation Connector locking systems with the environmental sealing of a premium Waterproof Connector. As versatile Industrial Connectors, they support Pin configurations from 3 to 12 pins (with options up to 17 pins available), in both male and female variants, straight or angled orientations.

Key features include:

Industrial Connectors DNA: Designed for small sensors and actuators in control networks

Waterproof Connector integrity: IP67-rated protection against washdowns and dust ingress

Aviation Connector heritage: Threaded coupling for secure mating in high-vibration environments

Choose from un-shielded or shielded versions, factory TPU over-molded cables, or panel receptacles with solder-cup or PCB contacts. Field attachable options provide maximum installation flexibility.

Cable diameter: 6.0mm ±0.30mm

Cable, note: Signal/Data transmission, By IEC 61156-6

Conductor cross-section: 18/20/22/24/26AWG

Connection 1: M8x1/M12x1, Male/Female, straight/angle, 3/4/5/6/8/12/17-pin, A/B/D/X coded

Number of conductors: 3/4/5/6/8/12/17

System: Molded/Assembled

Operating voltage: 30VDC

Rated current (40 °C): 4A (High current version up to 8A)

Cable jacket material, note: Shielded/Unshielded

Cable jacket, material: PUR/PVC/TPU

Cable shield/Unshielded: Aluminum foil and copper braid/Unshielded

Material contacts: Copper gold plated

Material cover Nut: Brass nickel-plated

Cable jacket, color: Black/Green/Blue/Yellow/Grey

Cable length L: Any length

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
