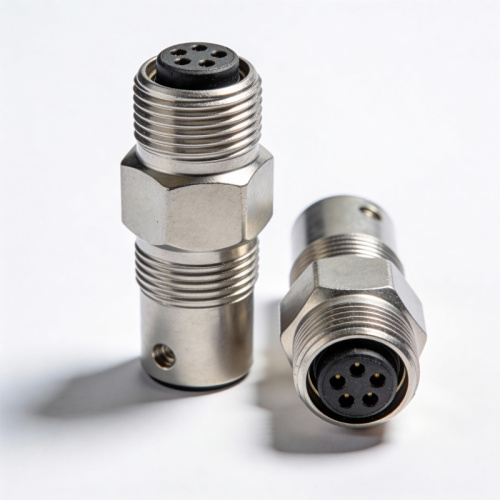

Ethernet M12 Cable with M12 Connector Coding

Ethernet M12 Cable with M12 Connector Coding

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: M12 Circular Connector

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Vga, Bnc, Dvi, Hdmi, Adapter, Din, Rj45

Application: Automotive, Rf, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf

Gender: Female, Male

Contacts: 1p, 7p, 20p, 2p, 6p, 4p, 9p, 3p, 5p, 8p

Application: Automotive, New Energy, Robot, Industiral, Industrial Ethernet, Profinet, Ethernet IP

Type: Waterproof Connector

Rated Current: 4 A, 2 A

Rated Voltage: 250 V

IP Level: IP67 / 68

Contact Material: Copper Gold Plating

Housing Material: Brass nickel-plated/Zinc alloy nickel-plated/PA-GF

Gender: Female / Male

Shape: Round

Number Of Pins: 2,3,4,5,6,8,12,17pin

Current Rate: 1.5A/2A/4A

Cording: A/B/C/D

Insulator Material: PA+GF/TPU

Type Of Connection: Screw/ solder connection

Molding Material: TPU/PVC

Sealing Material: Epoxy resin/Rubber

Temperature Range: -25°C ~ +85°C

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CNC Milling Parts



Product Description

Industrial M12 Connectors | Waterproof & Aviation-Style Circular Plugs

One connector, three strengths. Aviation-style threading, IP67 waterproof rating, and industrial-grade durability. Male/female M12s ready to ship.

Why stock three different types of connectors when one does it all? The M12 is the ultimate hybrid, combining the best features of an Aviation Connector, a Waterproof Connector, and a heavy-duty industrial connector into one compact package.

Aviation Connector Heritage: The circular bayonet-style thread provides a mechanical lock that vibration cannot defeat.
Waterproof Connector Seal: IP67 and IP68 ratings mean dust and water are permanently locked out.
Industrial Connector Power: Handles the voltage, current, and data speeds required by modern factories and smart agriculture.

Technical Specifications

Contacts: 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Pin

Rated current: 0.5~4 A

Rated voltage: 300V

Rated voltage: Copper/Copper Alloy (Gold plating/Nickel plating)

Wire gouge: AWG30~AWG16

Mating cycles: >100 times

Contact resistance: ≤5 mΩ

Material of contact: Brass

Contact plating: Gold

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
