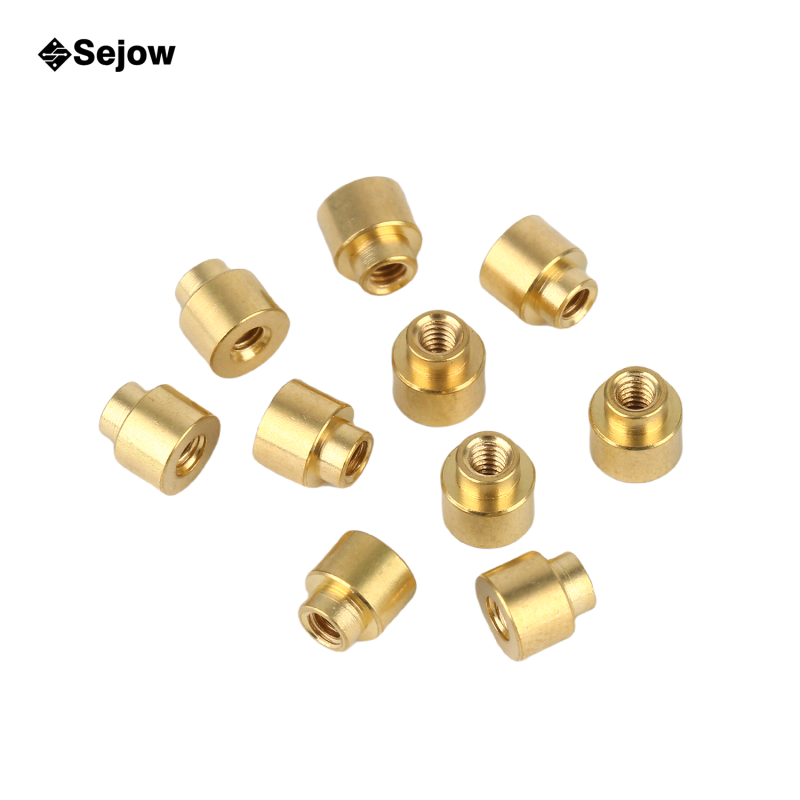

Functional Design of Precision Mechanical Parts

Precision mechanical parts are the core components of high-end equipment (such as aerospace equipment, semiconductor machine tools, medical instruments, precision instruments, etc.), and their performance directly determines the accuracy, reliability and life of the equipment. Functional design and manufacturing are two closely coordinated links: functional design gives parts "proper performance", and manufacturing achieves design goals through processes. The following is a detailed analysis from the two aspects of functional design and manufacturing:

1. Functional design of precision mechanical parts

Functional design is based on usage requirements, through parameter definition, structure optimization, performance simulation and other means, to clarify the process of "what parts can do" and "how to achieve it". The core goal is to meet accuracy, reliability, life and environmental adaptability.

1. Core objectives of functional design

Accuracy adaptation: meet the equipment's requirements for motion/positioning accuracy (e.g., the positioning accuracy of semiconductor lithography machine parts must reach the nanometer level);

Reliable performance: maintain stability during long-term high-frequency use (e.g., aircraft engine bearings must withstand continuous operation under high temperature and high pressure);

Life guarantee: extend service life through material and structure optimization (e.g., precision gears must resist tooth surface wear and fatigue);

Environmental compatibility: adapt to extreme working conditions (e.g., deep-sea detector parts must withstand high pressure, and polar equipment parts must withstand low-temperature embrittlement).

2. Key elements of functional design

(1) Geometry and parameter design

Core parameters must be defined based on the function:

Motion parts (e.g., lead screws, guide rails): lead accuracy, straightness, and parallelism must be clearly defined;

Transmission parts (e.g., gears, worm gears): module, tooth profile accuracy (ISO 1-6), and meshing clearance must be defined;

Support parts (e.g., bearing seats): flatness and verticality must be guaranteed to avoid assembly stress.

Example: The lead error of a precision ball Screw must be controlled within 0.01mm/300mm. During design, the friction loss must be reduced by optimizing the thread lead angle.

(2) Material matching design

The material must meet both functional requirements and processing feasibility:

Metal materials: high-strength alloy steel (such as 40CrNiMoA, used for precision shafts that withstand impact), aluminum alloy (such as 6061-T6, used for lightweight precision brackets), titanium alloy (TC4, used for high-temperature corrosion-resistant parts in aerospace);

Non-metal materials: engineering plastics (such as PEEK, which is resistant to high temperatures and self-lubricating, used for precision transmission parts of medical instruments), ceramics (zirconia, which is wear-resistant and insulating, used for precision guide rails of semiconductor equipment);

Composite materials: carbon fiber reinforced resin (CFRP, which is lightweight and highly rigid, used for crossbeams of high-end machine tools).

Note: The material must match the processing technology (such as ceramics are hard and brittle and require grinding with diamond wheels; aluminum alloys are easy to stick to knives and require high-speed cutting).

(3) Structural optimization design

Improve performance through structural improvement:

Strengthen rigidity: such as adding reinforcing ribs to thin-walled parts (to avoid deformation during processing/use);

Lightweight: remove redundant materials through topological optimization (such as the hollow structure of aircraft engine blades);

Anti-interference design: such as precision sensor parts need to avoid electromagnetic/thermal interference, and shielding layers or thermal insulation structures can be added.

(4) Tolerance and fit design

Tolerance directly affects assembly accuracy and functional realization:

Tolerance grades (such as IT01-IT18, IT3-IT5 is commonly used for precision parts) need to be defined according to the fit type (clearance fit, interference fit, transition fit);

Example: The fit between the inner ring of a precision bearing and the shaft is an interference fit (interference amount 0.001-0.003mm) to ensure that there is no relative sliding during operation; the outer ring and the bearing seat are clearance fits (clearance 0.002-0.005mm) to avoid jamming due to temperature rise.

(5) Simulation and verification

Use digital tools to expose problems in advance:

CAD modeling: Use SolidWorks and UG for 3D modeling to clarify geometric parameters;

CAE simulation: Use ANSYS for finite element analysis (such as analyzing the root stress of precision gears during meshing to avoid fracture); Use ADAMS for kinematic simulation (such as analyzing the motion trajectory accuracy of robot joint parts);
