M8 4 Pin Circular Connector

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: M8 Circular Connectors

Brand: Sejow

Origin: China

Place Of Origin: China

Species: Usb, Vga, Bnc, Dvi, Hdmi, Rca, Rgb, Adapter, Din, Rj45, Pal, Xlr, Ssma, Smb

Application: Rf, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf, Automotive

Gender: Female, Male

Contacts: 1p, 7p, 10p, 2p, 6p, 4p, 9p, 5p, 3p, 12p, 8p, 16p

Application: Industrial Automation

Cable Temperature: -40°C to + 85°C

IP Rating: IP67/IP68

Cable: PUR/PVC/Shielded/Unshielded, any length

Cable Diameter: 6.0mm ±0.30mm

Cable, Note: Signal/Data transmission, By IEC 61156-6

Conductor Cross-section: 18AWG/20AWG/22AWG/24AWG/26AWG/28AWG

Connection 1: M5/M8/M12/M16/M23, Male/Female, straight/angle, 3/4/5/6/8/12/17-pin, A/B/D/X coded

Number Of Conductors: 2/3/4/5/6/8/12/17

Rated Voltage: 30V-250V

Rated Current (40 °C): 1A-4A (High current version up to 8A)

Cable Jacket Material, Note: Shielded/Unshielded

Cable Jacket, Material: PUR/PVC/TPU

Cable Shield/Unshielded: Aluminum foil and copper braid/Unshielded

Material Contacts: Copper gold plated

Material Cover Nut: Brass

Cable Jacket, Color: Black/Green/Blue/Yellow/Grey

Cable Length L: Any length

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

CNC Machining Parts 1



Product Description

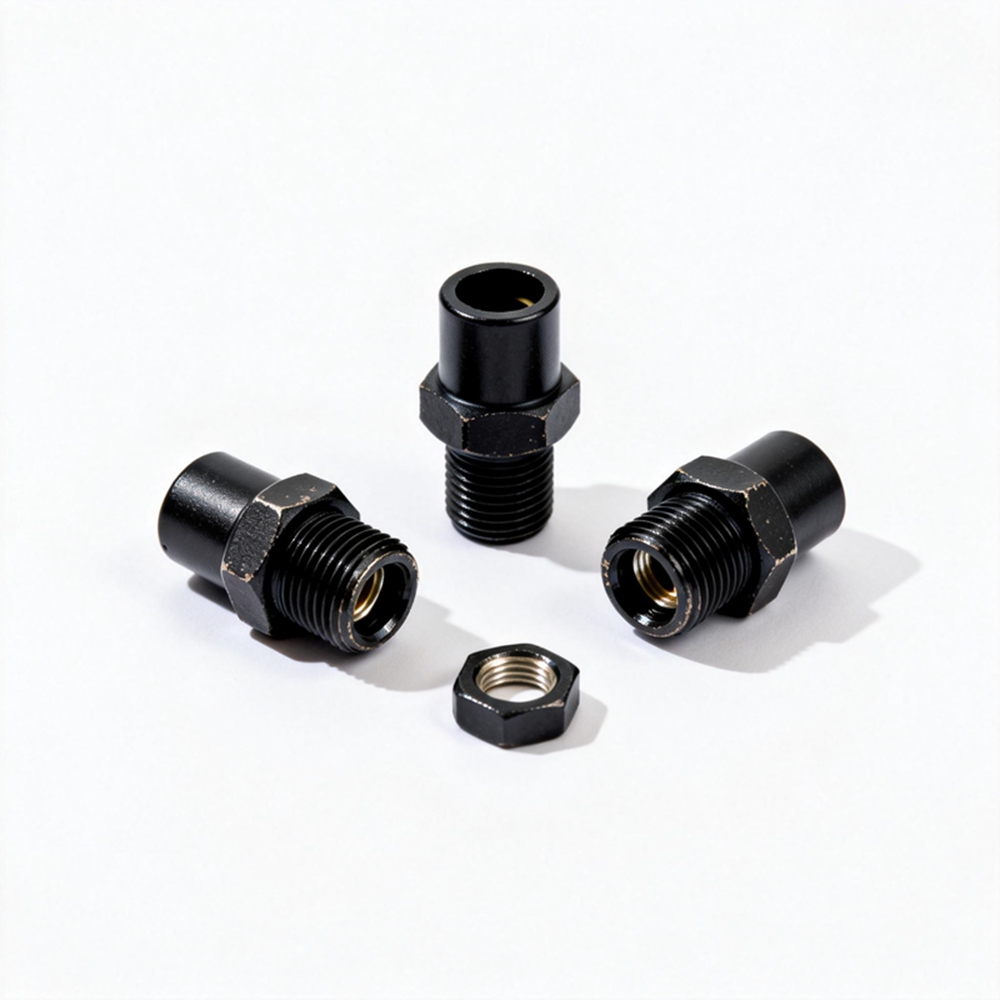

M8 Circular Connector

Our M8 waterproof connectors are designed to meet IP67 and IP68 standards, ensuring excellent performance in harsh environments. These connectors provide secure connections even in applications exposed to moisture, dust, and vibration.

• M8 circular connector according to IEC 61076-2-104

• M8 circular connector with M8*1.0 Screw locking

• Equivalent to Binder, Phoenix, Lumburger automation

• Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical

• A-Code, B-Code, D-Code, Available

• 3 to 8 cores available

• Shielded and unshielded are available

• Customizable appearance and electroplating

• Meet the salt spray test for 48 hours

• Suitable for ambient temperatures ranging from -40°C to 105°

Pins	3、4、5、6、7、8pin	Material of contact	CuZn (brass)
Termination	solder	Contact plating	Au (gold)
Rated voltage	250V	Material of housing	Brass nickel plated
Rated current (40 °C)	4A	Material of contact body	PA66
Wire gauge	22-24AWG	Degree of protection	IP67
Insulation resistance	≥100MΩ	Pollution degree	3
Contact resistance	≤3MΩ	Overvoltage categorie	II
operation temperature	-40℃～+85℃	Material group	II
Locking system	screw	Standard	IEC61076-2-104

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
