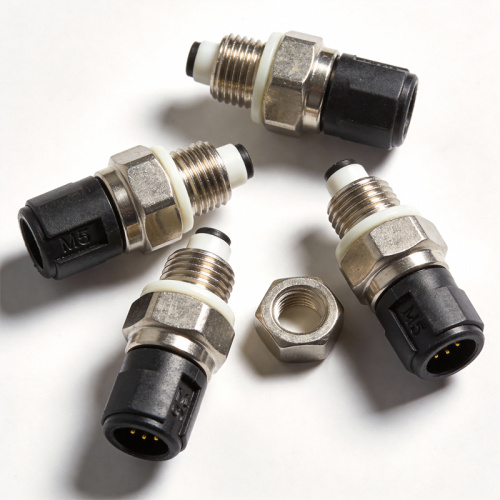

M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector
M5 4 pin Female Circular Connector

M5 4 pin Female Circular Connector

Get Latest Price
Payment Type:D/P,T/T
Incoterm:FOB,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Product Attributes

Model No.Custom

BrandSejow

Place Of OriginChina

SpeciesUsb, Vga, Dvi, Hdmi, Din, Rj45

ApplicationAutomotive, Rf, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf

GenderFemale, Male

Contacts1p, 7p, 14p, 10p, 24p, 4p, 5p, 3p, 8p, 2p

TypePlug

MaterialMetal

ColorSliver or Custom

Product NameM5 Shielded Male connector

Contact Number3pin 4pin

Rated Current1A

Voltage60 V

Hexagonal ScrewBrass Nickel Plated

O-RingRubber

Temperature Range-40~+105

Packaging & Delivery
Selling Units : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Customized Connectors
Product Description
M5 4 Pin Female Circular Connector

Product name: M5  3pin Plug
Ratings: Voltage: 60 V
Current: 1 A
Waterproof: IP 67
Operating Temperature Range: -40 ~ 85 °C
Materials
1 Insulator: Nylon 66 + 30% glass fiber, black
2 Pin: brass, gold-flashing
3 Shell: brass, nickel plated
4 O-ring: rubber
5 Hexagonal Nut: brass, nickel plated
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 10⁸ Ω min
Contact resistance: 10 mΩ or less
Mechanical Requirements: Insertion force: 0.82 kgf max
Withdrawal force: 0.62 kgf max
Life cycle: 500 mating cycles
Environmental Requirements
 Cold test: -25 °C for 2 hours without deformation
Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω
insulation resistance
Assembly info: Wire guage: 26 AWG max (Ø0.55 mm)
Panel cutout: Ø5.1 mm recommended
Certificate: RoHS,ISO9001
