Sejow (Shenzhen) Industrial Co., Ltd.

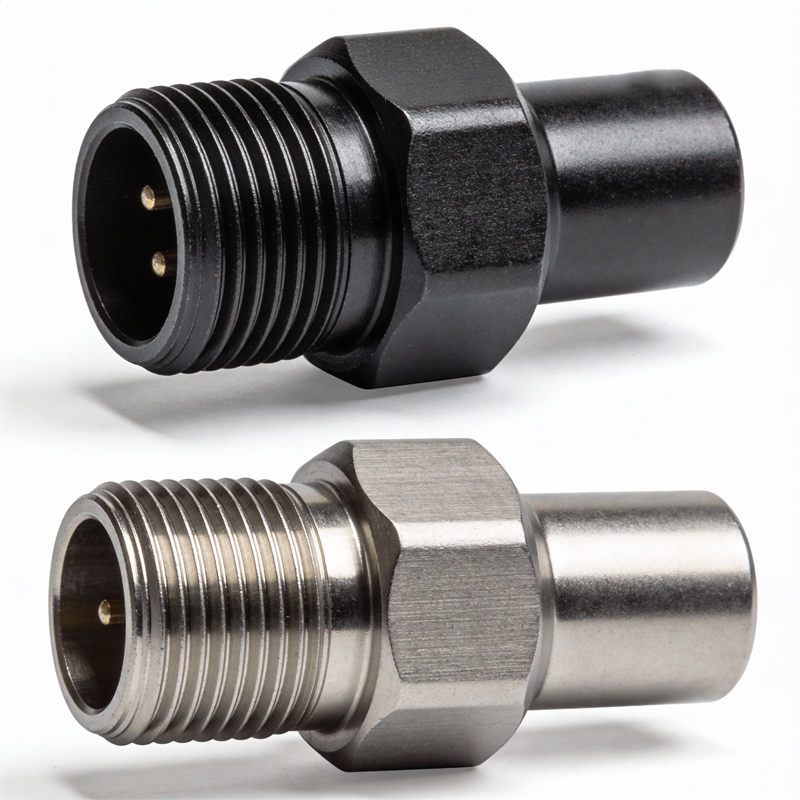

Model No.: M5 Circular Connector
Brand: Sejow
Place Of Origin: China
Species: Usb, Vga, Dvi, Hdmi, Pal, Rj45, Din, Rgb, Mmcx, Sma
Application: Automotive, Rf, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf
Gender: Female, Male
Contacts: 16p, 1p, 7p, 20p, 10p, 2p, 6p, 4p, 9p, 5p, 3p, 8p
Application: signal transmission, electric connection
Contact Material: Brass
Rated Current: 1.5A-16A
Rated Voltage: 30V-60V
Model Number: M5 Circular Connector
Gender: Male/Female
Housing Material: Brass
IP Level: IP67/IP68
Shape: Circular
Type: Waterproof Connector
Engagement Force: ≤50N
Disengagement Force: ≥500
Flammability: UL94 V-0
Insulation Resistance: ≥1000MΩ
Contact Resistance: ≤10mΩ
Operation Temperature: -40℃~+105℃
