FA Industrial Camera Data Transmission Harness
FA Industrial Camera Data Transmission Harness
FA Industrial Camera Data Transmission Harness
FA Industrial Camera Data Transmission Harness
FA Industrial Camera Data Transmission Harness

FA Industrial Camera Data Transmission Harness

Get Latest Price
Payment Type:T/T,Paypal
Incoterm:FOB,EXW
Min. Order:1 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangdong,China
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Brand: SeJow

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Carton

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Wiring Harness Assembly Video (9)
Product Description

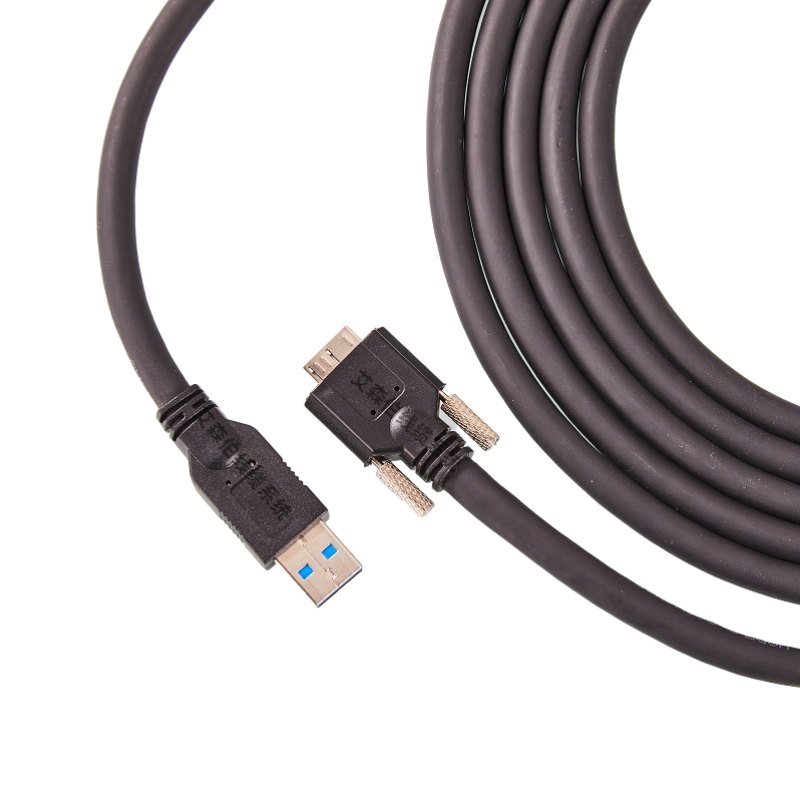

                                       SeJow FA Industrial Camera Data Transmission Wiring Harness Assembly


SeJow can provide OEM/ODM Wiring Harness based on your requirements. Wiring harness, also known as Cable Harness, wire harness, Cable Assembly, wiring assembly, is an assembly of electrical cables or wires which transmit signals or electrical power.


Industrial vision harnesses, how many do you know?

Industrial vision harnesses are mainly developed around industrial cameras to transmit data to the camera, trigger the camera, etc. Because different working conditions have very strict requirements on the rapid movement of the camera and large data transmission, the excellent matching of the Camera Harness is very important.


Application features of SeJow Electronics Industrial Vision Harness:

1. Non-standard length customization;

2. Fixed, drag chain, and torsion resistance are optional according to industry applications;

3. Cable materials are PVC and PUR, oil-resistant to match various working conditions;

4. One-piece molding injection molding, various plug directions, can support customization, more reliable;

5. Cables meet UL, CE and other standards;

6. After multiple tests, stable signal transmission is guaranteed.


Bas.Info.


Number of pins/holes: 10Pin
Connector type: USB3.0 AM to Miro-B
Wire outer sheath: Highly flexible PVC
Rated current: 3A
Wire gauge (cross-sectional area): 28AWG (0.08mm square)
Rated voltage: 30V
Copper core material: high-precision oxygen-free copper
Core wire insulation: HDPE
Shielding structure: 360° surround shielding
Elbow/straight head: straight head
Outer sheath color: black
Applicable temperature: -20℃~+80℃
Pin pin/terminal plating: gold plating
Connector rubber core: PC
Contact resistance: ≤10mΩ
Insulation resistance: ≥100MΩ
Drag chain bending times: 8 million times
Plugging life: 100 times
Bandwidth level: 5Gbps
Environmental protection requirements: ROHS&REACH
Characteristic impedance: 90±7 (USB Association standard)
Minimum bending radius: 7.5*OD (cable outer diameter)
