High-flexible Industrial Camera Power Trigger Cable
High-flexible Industrial Camera Power Trigger Cable
High-flexible Industrial Camera Power Trigger Cable
High-flexible Industrial Camera Power Trigger Cable
High-flexible Industrial Camera Power Trigger Cable

High-flexible Industrial Camera Power Trigger Cable

Get Latest Price
Payment Type:T/T,Paypal
Incoterm:FOB,EXW
Min. Order:1 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangdong,China
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Brand: SeJow

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Carton

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Wiring Harness Assembly Video (9)
Product Description

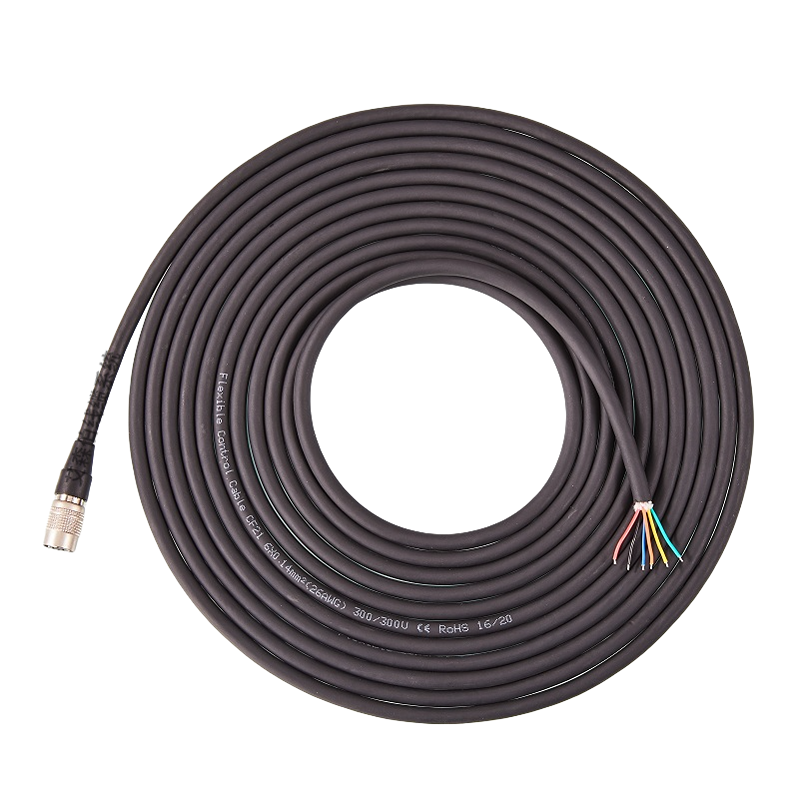

                       SeJow High-flexible Industrial Industrial Cable Camera Power Trigger Cable Assembly


SeJow can provide OEM/ODM Wiring Harness based on your requirements. Wiring harness, also known as Cable Harness, wire harness, Cable Assembly, wiring assembly, is an assembly of electrical cables or wires which transmit signals or electrical power.




Industrial wiring harnesses have a wide range of applications,including the internal connection of home appliances, test instruments, equipment, computers and network equipment,as well as the connection of industrial UPS, PLC, CP, inverter,power,monitoring,air conditioning,wind energy and other cabinets.


It needs to withstand high quality requirements of rapid acceleration and deceleration,tension,compression and torsional stresses,and millions of cycles of bending, while being small batch and multi-specification harnesses.



Bas.Info.

Number of pins/holes: 6Pin
Connector type: hr10a-7p-6s
Wire outer sheath: High-flexible PVC
Rated current: 1A
Wire gauge (cross-sectional area): 26AWG (0.14mm square)
Rated voltage: 30V
Copper core material: high-precision oxygen-free copper
Core wire insulation: HDPE
Shielding structure: 360° surround shielding
Elbow/straight head: straight head
Outer sheath color: black
Applicable temperature: -20℃~+80℃
Pin pin/terminal plating: gold plating
Connector rubber core: PC
Contact resistance: ≤10mΩ
Insulation resistance: ≥100MΩ
Plug-in life: 100 times
Environmental protection requirements: ROHS&REACH
Drag chain bending times: 5 million times
Characteristic impedance: 100±15 (TIA568B association standard)
Bandwidth level: Cat 5e (1000Mbps/100Mhz)
Minimum bending radius: 7.5*OD (cable outer diameter)

Wiring Harness Application (5)

Wiring Harness Application (2)
Wiring Harness Application (4)
Wiring Harness Application (1)
Wiring Harness Application (3)
